X-Lab AD9 Astana Team Edition Bike

$13,499.95
Tax included. Shipping calculated at checkout.

Now Taking Preorders for expected delivery in Oct 2025

The Premier bike from a new breed of high quality, high performance Chinese manufacturers quickly sweeping the world!

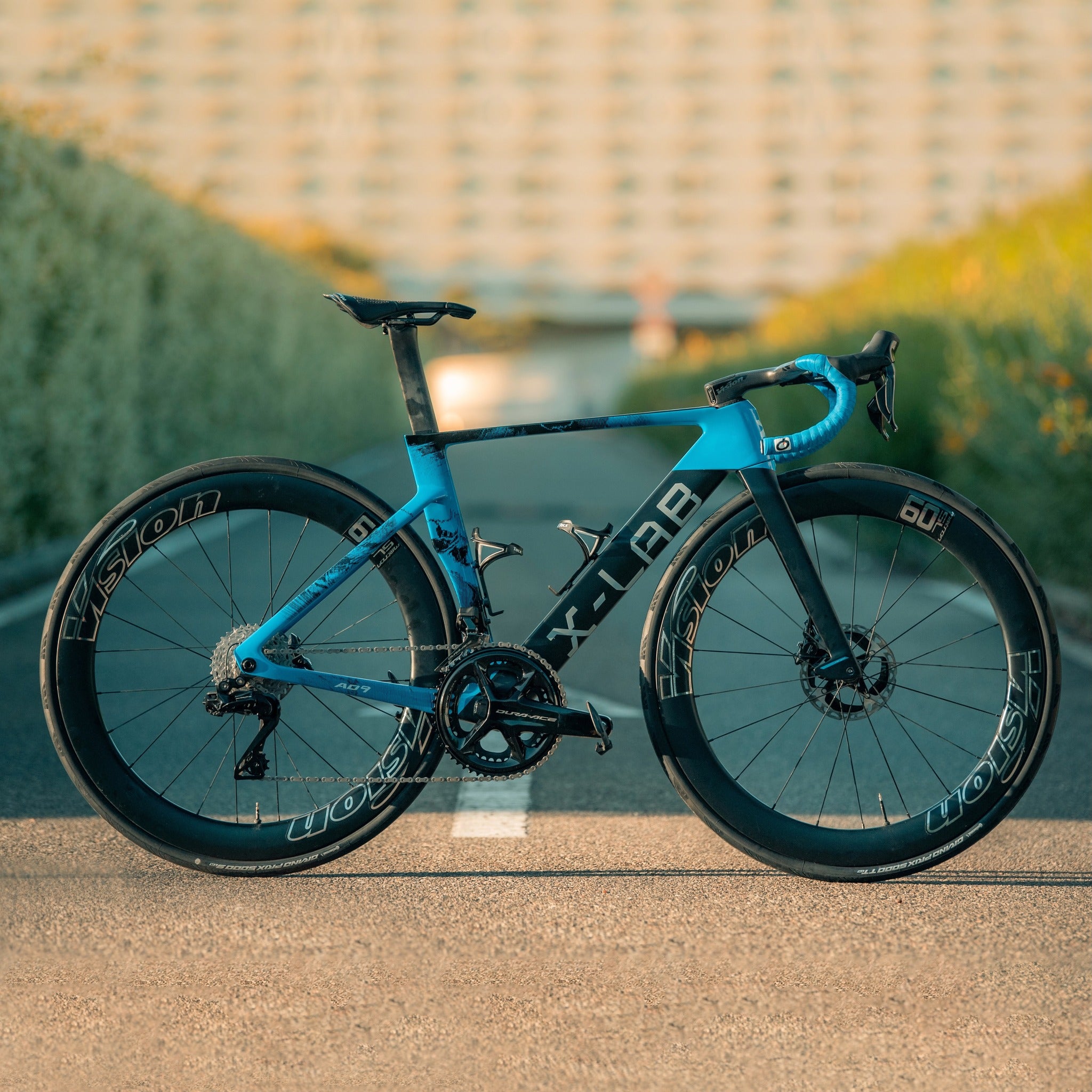

A winning, WORLD TOUR, race-ready aero bike, just like the team rides. The XDS X-Lab AD9 is a full carbon, high modulus, aero frameset designed for speed, stability, and clean aesthetics — perfect for time trials, triathlon, or an aggressive aero road setup. This Team Edition will be built and spec'd just like the bikes ridden by Team XDS Astana in the World Tour.

Read more about X-Lab here
Read our in-house test & ride review here

Features
- Super-high modulus T1100 carbon fibre frame and fork
- Aerodynamic tube shaping and integrated aero seatpost (0 Degree offset standard)
- Superlight one-piece handlebar/stem
- Dura Ace Di2, Vision Metron 60 SL
*Final Spec TBD


Colour: Astana Team Colorway
Size: XS - 50

Pickup available at Urban Pedaler Store.

Usually ready in 24 hours

Colour: Astana Team Colorway
Size: XS - 50

Each bike purchased with us includes:

  • Professionally built and inspected by an experienced bicycle technician
  • Free minor adjustments for 30 days from purchase
  • Free first tuneup between 3 and 6 months from purchase – valued at $149 – does not include parts
  • Lifetime Warranty on bike frames and Limited Warranty on complete bikes, subject to brand-specific inclusions

FRAMESET

Frame X-LAB AD9 carbon fiber frame, made with Toray T1100xM40X

Fork Carbon fork, 12x100mm thru-axle, flat mount disc brake

Headset (Not specified – optional to add)

DRIVETRAIN

Gear Shifters Shimano R9270 Di2, 12-speed electronic

Front Derailleur Shimano R9270 Di2, 12-speed

Rear Derailleur Shimano R9270 Di2, 12-speed

Chainwheel & Cranks Shimano Dura-Ace FC-R9200, 36/52T, 170mm, 12-speed

Bottom Bracket BBT47 86-24

Cassette Shimano Dura-Ace CS-R9200, 11-34T, 12-speed

Chain Shimano M9100, 12-speed

BRAKES

Front Brakes Shimano ST-R9270 (right lever), BR-R9270 (front caliper)

Rear Brakes Shimano ST-R9270 (left lever), BR-R9270 (rear caliper)

Brake Discs Shimano RT-MT900, 160mm front, 140mm rear

WHEELS

Front Wheel Vision Metron 60 SL, Vision sealed bearing hub, 21mm internal / 31.1mm external width, centerlock disc

Rear Wheel Vision Metron 60 SL, Vision sealed bearing hub, 21mm internal / 31.1mm external width, centerlock disc

Inner Tubes 700C×25–32C F/V (80mm valve), 0.6T ultra-lightweight

Tyres Maxxis clincher Hypr ZK, puncture-resistant, folding, 700x28c

Wheel Size 700

COMPONENTS

Handlebar X-LAB integrated carbon handlebar

XS: 360mm / 90mm stem

S: 360mm / 100mm stem

M: 380mm / 110mm stem

L: 400mm / 120mm stem

XL: 400mm / 130mm stem

Handlebar Tape Mummy silicone with EVA padding, 2400mm x 30mm

Seatpost Carbon straight seatpost, 300mm

Saddle Prologo NAGO R4 PAS ASTANA, carbon rails

Seat Clamp (Not specified – optional to add)OTHER

Weight NW 7.2kg (excluding pedals), size S – reference only, subject to variation due to paint differences

User Weight Maximum allowable load: 100kg

Please note that, based on component availability and other factors, specifications are subject to change without notice.

Yes we ship these bikes all over Australia! With competitive rates automatically calculated at checkout.
