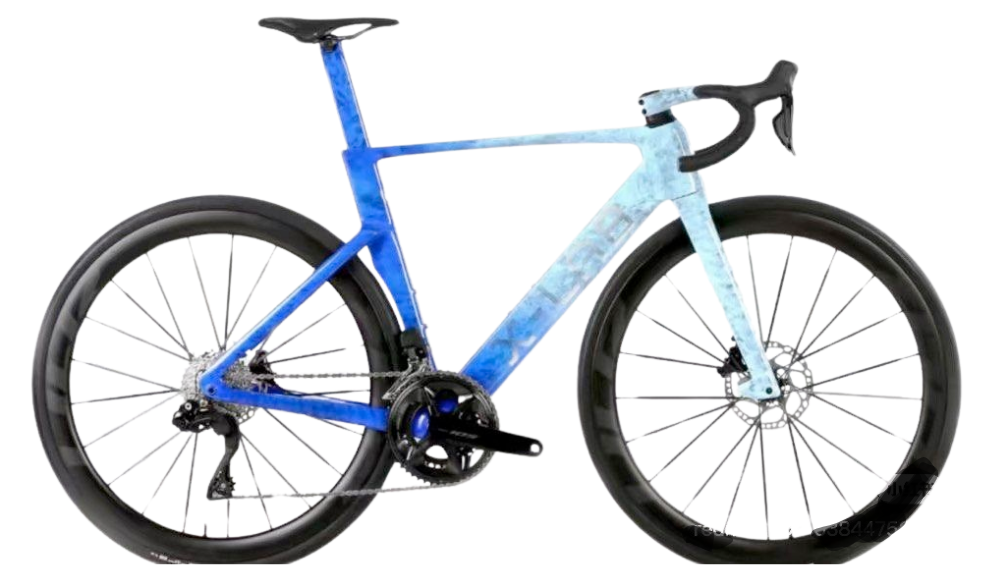

X-Lab AD8 105 di2

$7,999.95 $6,499.95 Save 19%
Tax included. Shipping calculated at checkout.

Looking for a WORLD TOUR race ready aero bike without breaking the bank? The XDS X-Lab AD8 is a full carbon, high modulus, aero frameset designed for speed, stability, and clean aesthetics — perfect for time trials, triathlon, or an aggressive aero road setup. As ridden by Team XDS Astana in the World Tour.

Read more about X-Lab here

Read our in-house test & review here

Features
- Bike as pictured 7.5kg! (950g frame in size MD)
- Full himod carbon fibre frame and fork
- 1350g Carbon Branta wheels with carbon spokes
- Aerodynamic tube shaping and integrated aero seatpost (0 Degree offset standard)
- Superlight one-piece handlebar/stem

Note, We have limited number X-Lab bikes and frames available. If you are after a test ride or purchase, please stop by or contact us to determine availability.

Colour: Grey
Size: MD - 54

Pickup available at Urban Pedaler Store.

Usually ready in 24 hours

Colour: Grey
Size: MD - 54

Each bike purchased with us includes:

  • Professionally built and inspected by an experienced bicycle technician
  • Free minor adjustments for 30 days from purchase
  • Free first tuneup between 3 and 6 months from purchase – valued at $149 – does not include parts
  • Lifetime Warranty on bike frames and Limited Warranty on complete bikes, subject to brand-specific inclusions

FRAMESET

Frame X-LAB AD8 Carbon Frame Toray T800xM40X

Fork Carbon fork 12x100mm barrel axle flush disc brake

Headset (Not specified)

DRIVETRAIN

Gear Shifters SHIMANO R7170 105 DI2 12-speed

Front Derailleur SHIMANO R7170 DI2 12-speed

Rear Derailleur SHIMANO R7170 DI2 12-speed

Chainwheel & Cranks SHIMANO 105 FC-R7100 34/50T×170 12-speed

Bottom Bracket BBT47 86-24

Cassette SHIMANO 105 CS-R7101 11/34T 12-speed

Chain SHIMANO M7100 12-speed

BRAKES

Front Brakes SHIMANO ST-R7170(R), BR-R7170(F)

Rear Brakes SHIMANO ST-R7170(L), BR-R7170(R)

Brake Discs SHIMANO SM-RT70 160MM FRONT AND 140MM REAR

WHEELS

Front Wheel Branta UL 50 Branta bearings, 21mm inner width, 29mm outer width, Center lock disc brake seat

Rear Wheel Branta UL 50 Branta bearings, 21mm inner width, 29mm outer width, Center lock disc brake seat

Tyres Maxxis clincher hypr ZK puncture-resistant clincher folding tire 700x28c

Wheel Size 700

COMPONENTS

Handlebar X-LAB Carbon Fiber Handlebar XS/36090, S/360100, M/380110, L/400120, XL/400*130

Seatpost Carbon Straight Seatpost 300mm

Seat Clamp Integrated

Saddle Selle Italia SLR BOOST Carbon Bow 145x248mm

CONNECTIVITY

(Not specified – add Wheel Sensor or electronics if available)

OTHER

Weight NW 7.6KG (excluding pedals) M size (data is for reference only, there will be deviations due to different paint weights)

User Weight The maximum allowable load is 100KG

___________

Please note that, based on component availability and other factors, specifications are subject to change without notice.

Yes we ship these bikes all over Australia! With competitive rates automatically calculated at checkout.
